Description

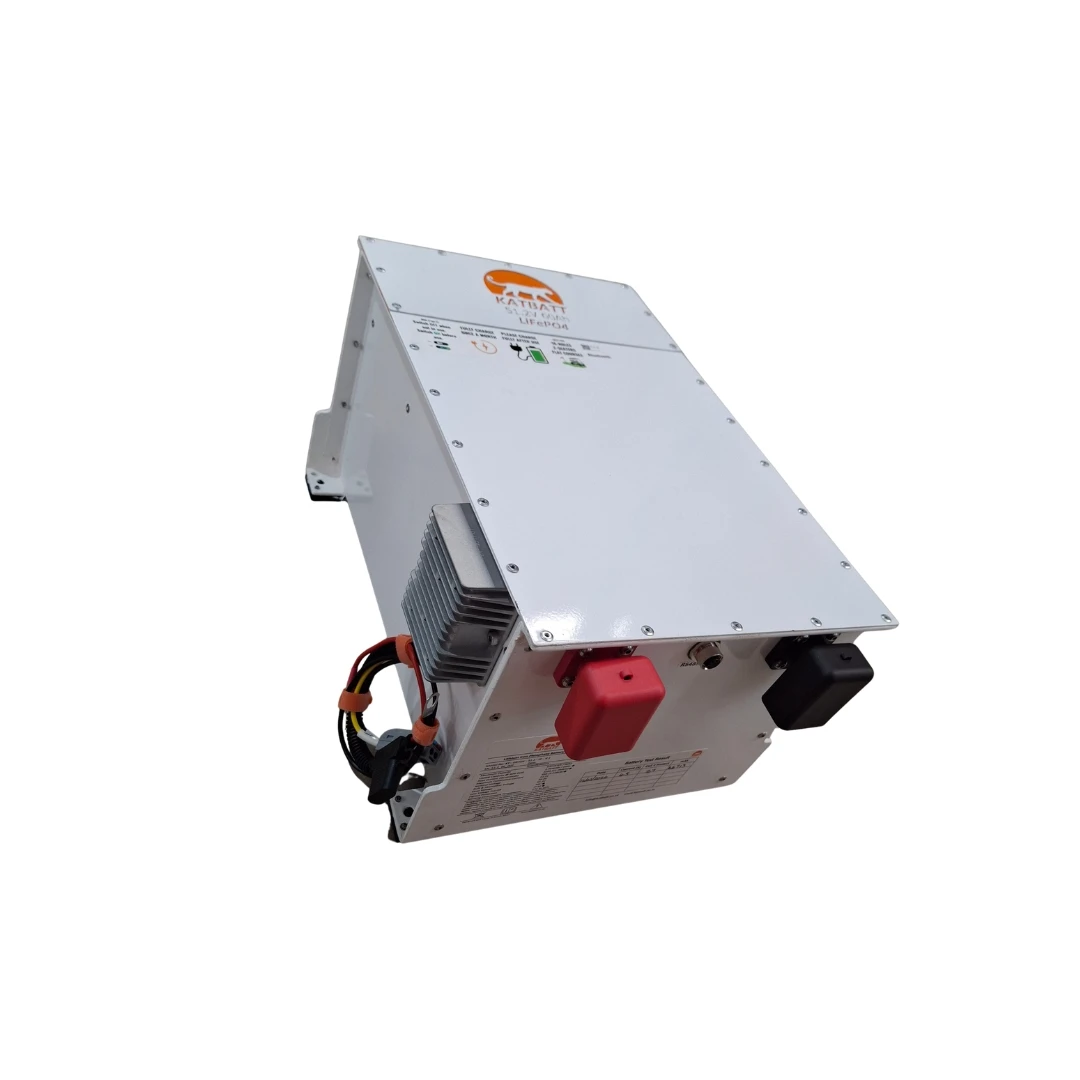

48V 60Ah Lithium Golf Cart Battery
Engineered in South Africa for longer runtime, confident hill-climbing and zero maintenance.
Direct drop-in replacement for EZGO, Club Car, Yamaha, Melex and other 48V carts.
Do it yourself easily in no time
How to remove old batteries (under 30 minutes)
- Take a clear photo of current setup
- Loosen all bolts and connecters
- Clean battery compartment (Make sure to wear protective gloves and eye wear if there is spilled acid)
How to install our battery hassle-free
- Find the correct spot to place battery
- Ensure the position wil not require cable lengthening
- Fit supplied mounting brackets to the battery
- Mark mounting holes
- Remove battery
- Drill mounting holes
- Place battery onto drilled mounting holes
- Fasten with provided bolts
Connecting the cables

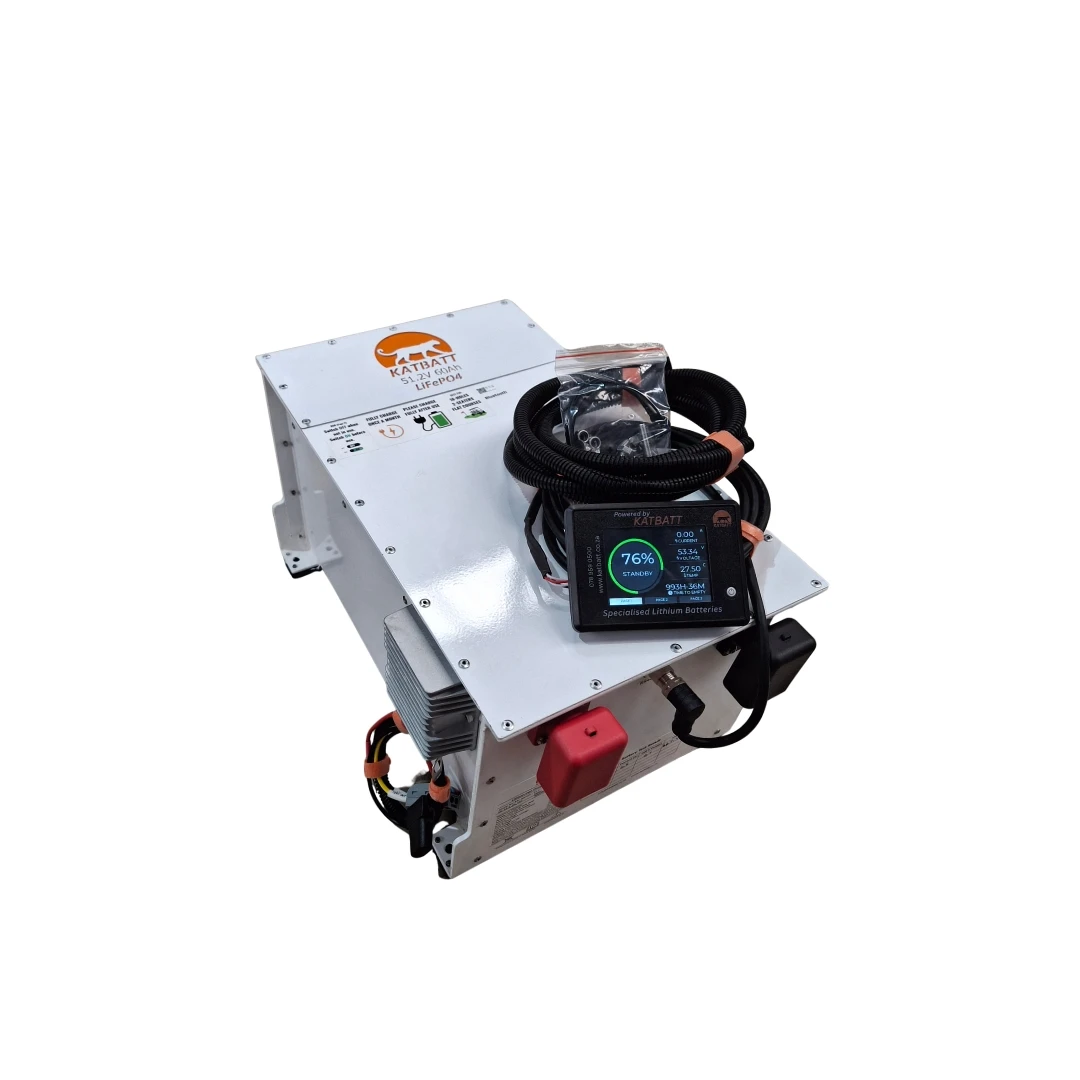

- Plug in proved Touchscreen display
- Switch of DSG on page 2
- Connect charge port and controller cables
- Connect provided 12V Buck converter if you have lights & accessories
How to power lights & accesories
- Connect the black and red wires from the buck converter to the battery terminals, on top of the controller and charging cables.
- Connect the correct wiring to the Buck Converter’s yellow and black wire to give power to accessories.
Mount the Display:
- Mark and drill 3mm mounting holes.
- Secure the display holder using the supplied screws.
- Route and cable-tie the display cable neatly under the golf cart inside a protective Sprague/Sleeve.
- Fasten the end of the display cable nicely with a cable tie inside the display holder allowing flexibility.
Compatible with:
EZGO — 48V systems
Club Car — 48V models
Yamaha — 48V carts
Melex and other 48V platforms
Battery Care
Store at 50% – 80% charge for long storage.
Fully charge after use.
FAQ’s
Will this work with my cart?
Yes. The 48V 60Ah Golf Cart Lithium Battery is compatible with EZGO, Club Car, Yamaha, Melex and other 48V golf carts.
We supply the correct charging plug pre-fitted for your cart.
Is installation difficult?
No. It is a direct plug-and-play 48V replacement. You may reuse your existing cables/lugs if they are in good
condition, or use the supplied mounting hardware.
How long does it take to charge?
Approximately 6 hours using the included 48V 10A smart charger.
The charger features a recovery mode to safely reactivate a switched-off or flat lithium pack.
What is the warranty?
Every KATBATT Lithium Battery includes a 5-Year Battery Warranty and a 3-Year Charger Warranty, backed by local support.
If any factory issue occurs within 5 years, we collect, repair, and return your battery at no cost.
